Assets

An extensive range of fully mobilised vessels and equipment

We operate a fleet of eight survey vessels permanently equipped with high resolution bathymetry and inertial navigation systems suitable for coastal, inshore and offshore survey projects.

Our equipment pool includes high-resolution cameras and drop-down video systems as well as a range of oceanographic and water quality monitoring sensors. All vessels can be mobilised with additional geophysical, oceanographic or ecological survey equipment.

Skip to Equipment.



Vessels

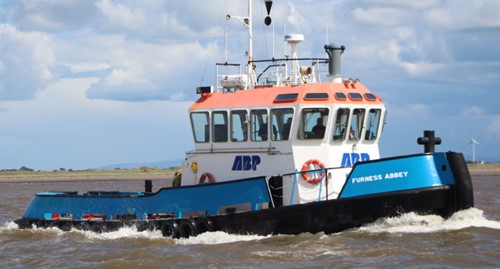

Furness Abbey

MCA Workboat Cat 2 (60Nm)

Transit speed: 10kts; Length: 19.0m; Beam: 6.0m; Draft: 2.2m; Location: Barrow-in-Furness

Permanently mobilised equipment

Multibeam bathymetry system: Teledyne Reson SeaBat 7125

Positioning system: Coda Octopus F185+

Furness Abbey survey vessel

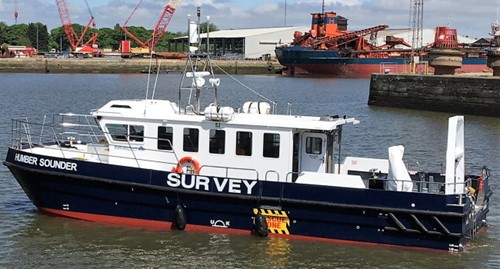

Humber Sounder

MCA Workboat Cat 2 (60Nm)

Transit speed: 20kts; Length: 14.0m; Beam: 5.0m; Draft: 1.1m; Location: Hull

Permanently mobilised equipment

Multibeam bathymetry system: R2Sonic 2024

Singlebeam bathymetry system: Knudsen 1602

Positioning system: Applanix POS MV Wavemaster

Humber Sounder survey vessel

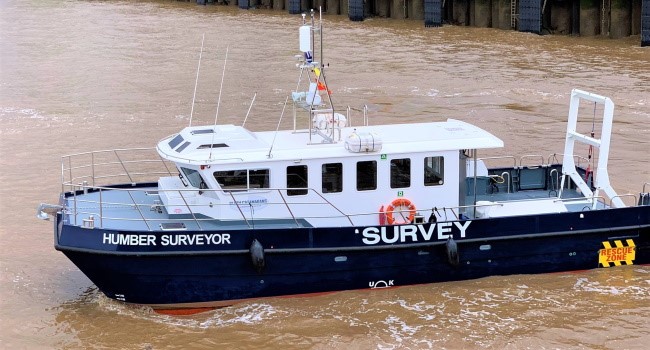

Humber Surveyor

MCA Workboat Cat 2 (60Nm)

Transit speed: 20kts; Length: 14.0m; Beam: 5.0m; Draft: 1.1m; Location: Hull

Permanently mobilised equipment

Multibeam bathymetry system: R2Sonic 2024

Singlebeam bathymetry system: Knudsen 1602

Positioning system: Applanix POS MV Wavemaster

Humber surveyor vessel

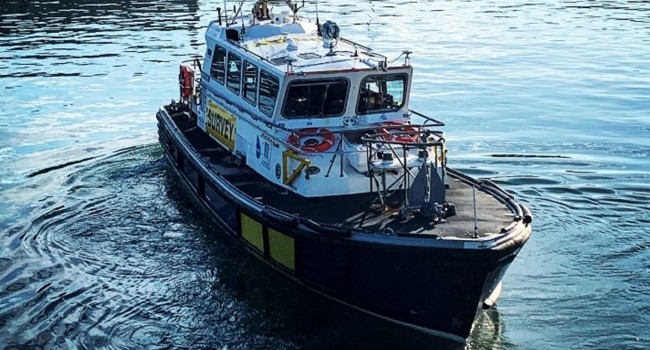

Protector

MCA Workboat Cat 3 (20Nm) Protector survey vessel

Transit speed: 20kts; Length: 13.6m; Beam: 4.0m; Draft: 1.3m; Location: Southampton

Permanently mobilised equipment
Multibeam bathymetry system: Teledyne Reson SeaBat 7101
Positioning system: Applanix POS MV Wavemaster

Protector survey vessel

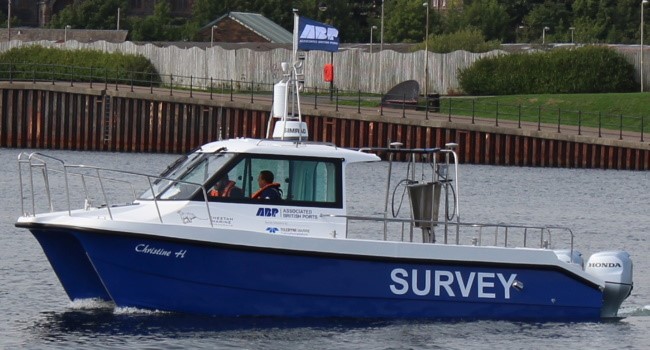

Christine H (road-transportable)

MCA Workboat Cat 3 (20Nm)

Transit speed: 20kts; Length: 7.9m; Beam: 2.7m; Draft: 0.5m; Location: Barrow-in-Furness

Permanently mobilised equipment
Multibeam bathymetry system: Teledyne ResonT50R
Positioning system: Applanix POS MV Wavemaster
Laser Scanner: Carlson Merlin

Christine H survey vessel


Wyke (road-transportable)

MCA Workboat Cat 4 (20Nm)

Transit speed: 20kts; Length: 5.8m; Beam: 2.0m; Draft: 0.3m; Location: Liverpool

Permanently mobilised equipment
Singlebeam bathymetry system: Teledyne E20
Positioning system: Hemisphere Vector 350

Wyke survey vessel

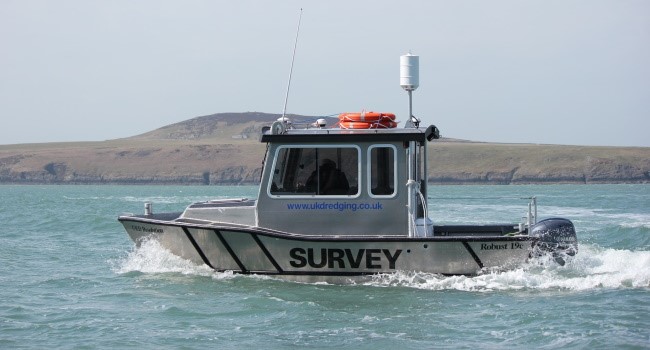

UKD Resolution (road-transportable)

MCA Workboat Cat 4 (20Nm)

Transit speed: 20kts; Length: 5.8m; Beam: 2.0m; Draft: 0.3m; Location: Cardiff

Permanently mobilised equipment
Singlebeam bathymetry system: Navisound
Positioning system: Trimble SPS

UKD Resolution survey vessel

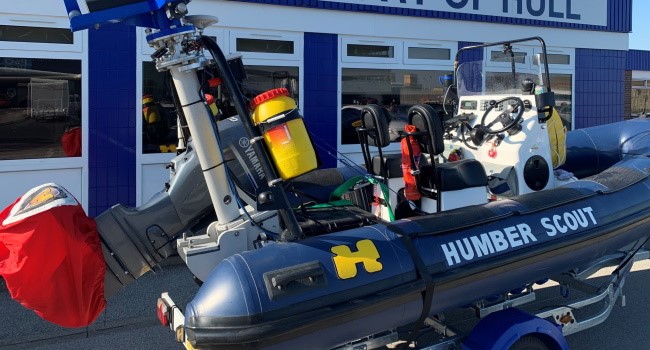

Humber Scout

MCA Workboat Cat 3 (20Nm)

Transit speed: 20kts; Length: 5.0m; Beam: 2.4m; Draft: 0.3m; Location: Hull

Permanently mobilised equipment
Singlebeam bathymetry system: CeeEcho
Positioning system: Lars Thrane LT 1000

Humber Scout survey vessel


Equipment

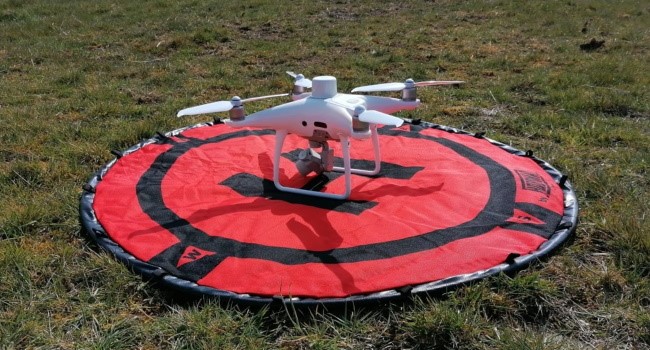

Drone

Brand: DJI Phantom 4 RTK with D-RTK2 base station
Location: Portable, suitable for any required survey area

The DJI Phantom 4 RTK drone is available to the ABPmer qualified remote pilots to conduct high resolution topographic photogrammetry surveys and inspections. Coupled with the D-RTK2 base station, the drone provides centimetric accuracy horizontal and vertical data at a resolution of up to 1cm.

DJI Phantom drone and base station

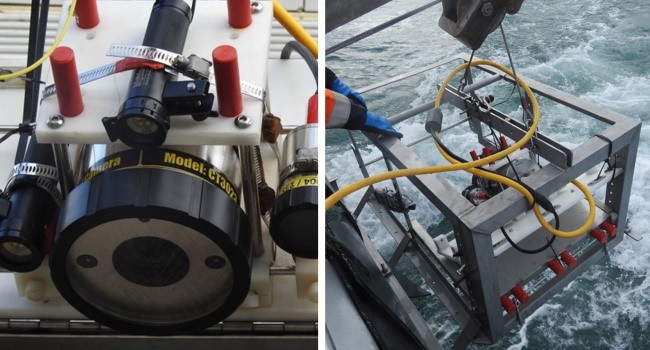

Drop-down video system

Brand: C-Technics CT3023 SLV
Location: System is portable; can be deployed from any suitable vessel.

Mounted onto a purpose-built sled, the C-Technics CT3023 SLV system can record high-definition video whilst taking full resolution still images.

With in-built lasers set at 100 mm apart (for scaling), LED lighting (providing improved definition and colour) and adjustable tilt mounts, the system is ideally suited for all ecological and inspection requirements.

DDV survey equipment

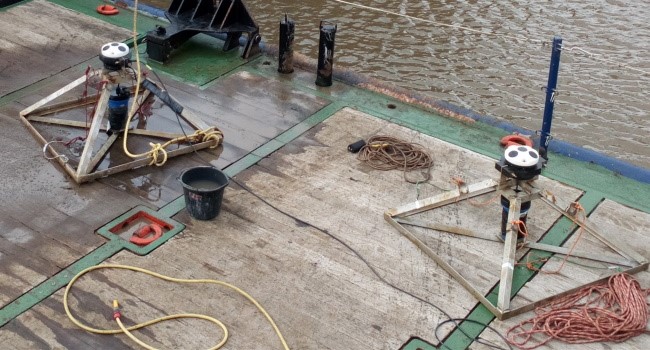

AWAC and AquaDopp systems

Brand: Nortek AWAC / Aquadopp
Location: Systems are portable; can be deployed from any suitable vessel.

Our Nortek AWAC (Acoustic Wave and Current) and AquaDopp instruments are available to monitor the current and wave climate at the required deployment location. The instruments are mobilised on purpose-built frames with acoustic tilt sensors to ensure upright deployment.

AWACs

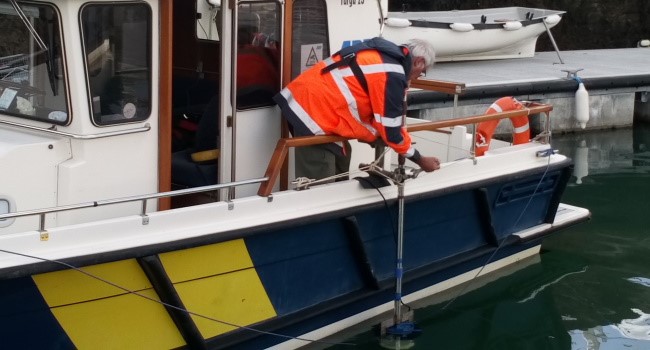

Vessel-mounted ADCP systems

Brand: Teledyne RDI
Location: System is portable; can be deployed from any suitable vessel.

Our Teledyne RDI ADCP system is vessel-mounted to monitor current flow speed and direction down through the water column. Mobile monitoring transects are run across channels and areas of interest to the project, rather than at a single location.

Vessel-mounted ADCP systems


Additional equipment

Multiple water quality sensors to observe temperature, salinity, tubidity and dissolved oxygen content

Niskin bottle water samplers

Day Grab

Van Veen Grab sampler

RTK topographic instruments

Want to talk about a survey?

GET IN TOUCH

Experience

Hydrographic-Geophysical Survey

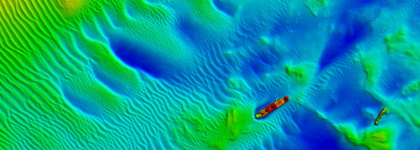

Crab fishery monitoring

Hydrographic-Geophysical Survey

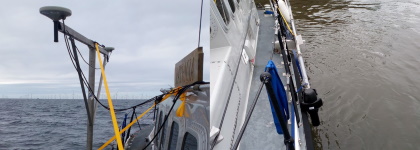

Area 392/93 geophysical survey

Oceanographic Survey

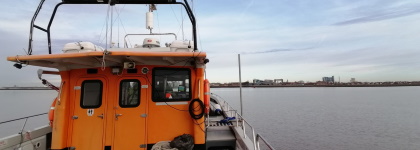

Hydrodynamic and coastal process impact assessment
